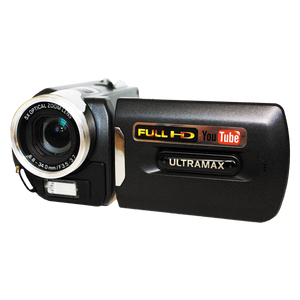

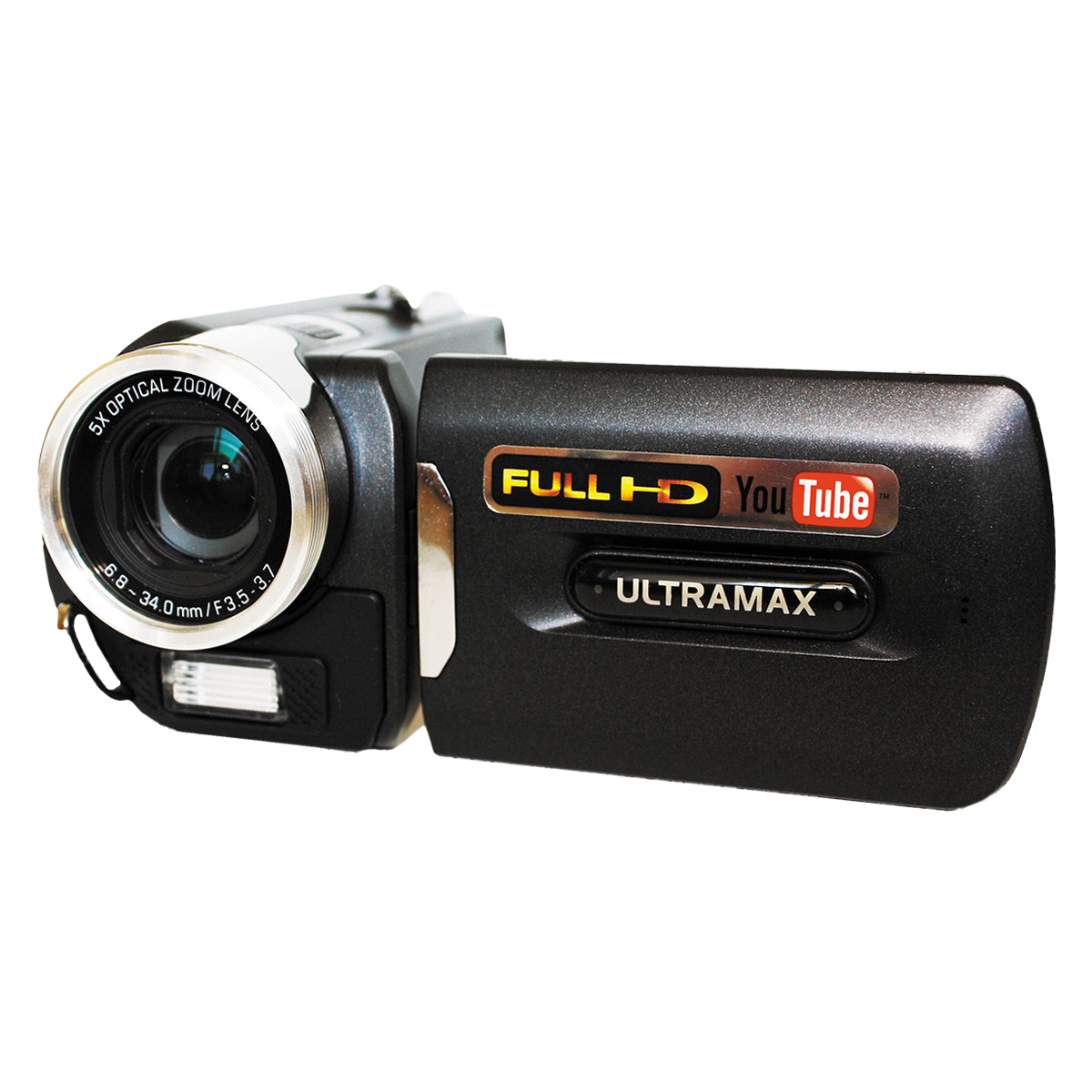

Underwater Digital Video Camera HD Body - front

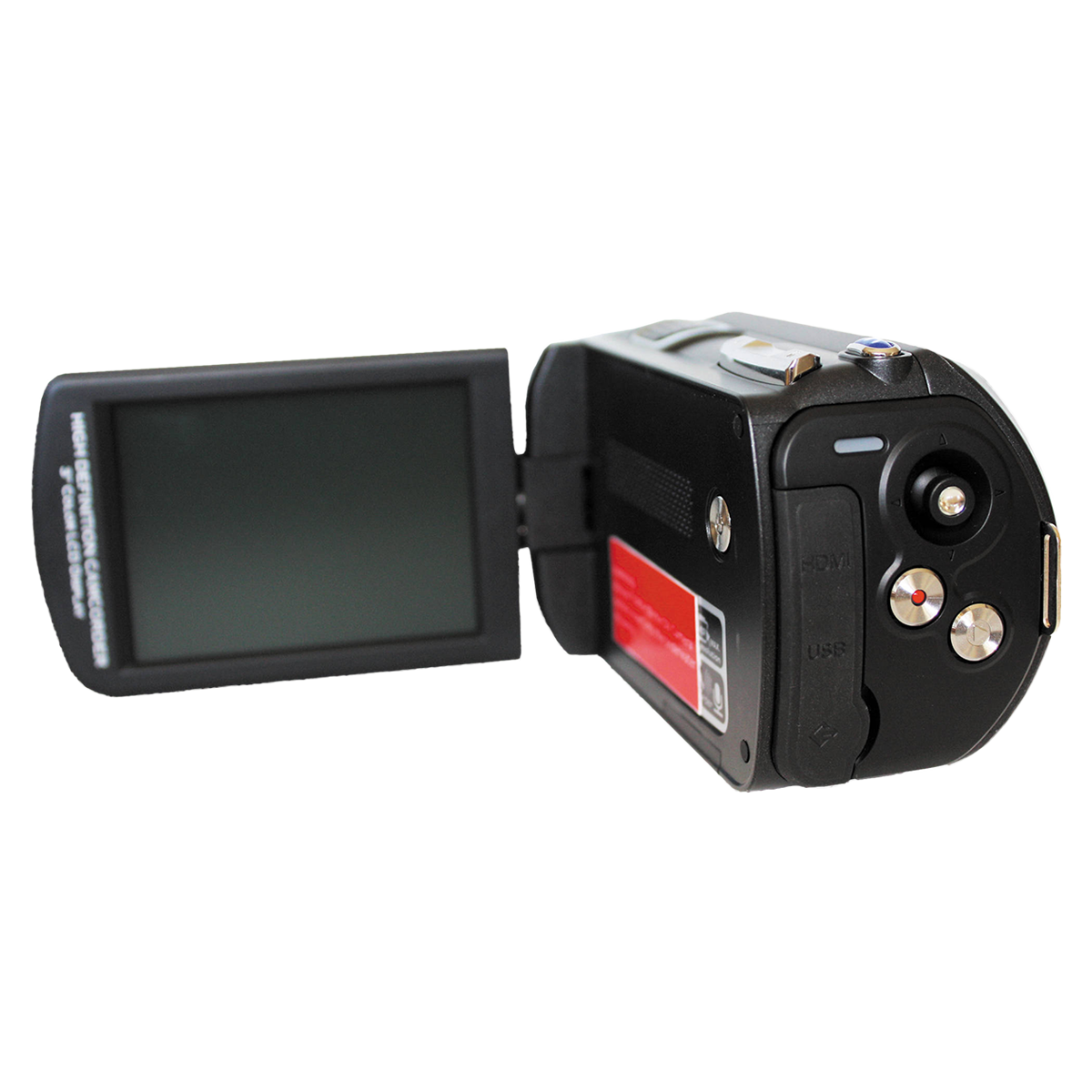

Underwater Digital Video Camera HD Body - back

Underwater Digital Video Camera HD Body

The UXDV-3HD-CAM 1080p Digital Video Camera features a 5MP, 1/2.5" CMOS image sensor that delivers 1920 x 1080p HD video at up to 30 fps. It can switch modes at the touch of a button to capture still images at resolutions of 5MP. It has a 5x optical zoom lens with a 35mm- equivalent focal length range of 40.8-204mm and auto and manual focus selection. It also has a 3.0" TFT LCD monitor with 270° rotation. A built-in flash aids in still shooting in low-light conditions. The camera also has image stabilization to reduce the effects of camera shake for clear, blur-free shots. The camera fits into an Ultramax UXDV-3HD-HSE underwater housing.

Product Highlight
  • 1920 x 1080p HD Video at 30 fps
  • 5MP 1/2.5" CMOS Image Sensor
  • 40.8-204mm Zoom Lens (35mm Equivalent)
  • 3.0" LCD Monitor with 270° Rotation
  • Auto and Manual Focus, Built-In Flash
  • 32MB Internal Memory, SD/SDHC/MMC Slot
  • Works in Select Underwater Housings
Overview Specifications In The Box

Underwater Digital Video Camera HD Body

Resolution
A 5MP, 1/2.5" CMOS image sensor records 1920 x 1080p HD video at up to 30 fps. Switch modes at the touch of a button to capture still images at resolutions of 5MP or 2MP, or a higher 8, 12, or 16MP by interpolation.
Lens
Features a 5x optical zoom lens with auto and manual focus and a 35mm-equivalent focal length range of 40.8-204mm.
Display
Equipped with a 3.0" TFT LCD monitor with 270° rotation.
Night Mode
Allows you to take a photograph with a dark background. Since the shutter speed will slow down when taking photographs in a dark place, the use of tripod is recommended to eliminate blur from shaking hands. The stabilizer function is disabled when NightShot is enabled.
Macro
For capturing extreme close-up pictures. Focus as close as 0.4" from your subject.
Flash
A built-in flash with auto and force modes aids in still shooting in low-light conditions.
Memory
Records images to its 32MB internal memory or to SD/SDHC or MMC memory cards up to 32GB in capacity.
Playback
Slide show of stills or videos
Auto Off
Set the length of the period of inactivity after which the camera will automatically shut down. You can select 1, 3 or 5min, or turn the feature off.
Power
Included 3.7V 1000mAh lithium-ion battery provides approximately 1 hr of continuous recording time or 2 hr of operation in standby mode, and is recharged by the supplied AC adapter.
Connectivity
HDMI output and included cables enable you to view your HD videos on an HDTV. There's also a Composite AV-out (NTSC / PAL) connector. Additionally, the camera features a USB 2.0 port and a USB cable is provided.
Camera
Imaging
Sensor 5.0 MP 1/2.5" CMOS
Resolution Still images:

5.0 MP: 2592 x 1944 (4:3), 2560 x 1920 (4:3)
2.0 MP: 1600 x 1200 (4:3)
8.0 MP (3200 x 2400 at 4:3), 12 MP (4000 x 3000 at 4:3) or 16 MP (4608 x 3456 at 4:3) available by interpolation
File Format Still image: JPEG
Movie: MP4 (H.264)
Audio: WAV
Image Stabilization Yes
Optics
Focal Length 6.8-34 mm
35 mm equivalent: 40.8-204 mm
Maximum Aperture f/3.5-3.7
Focusing Distance Normal: 31.5" / 80 cm - infinity
Macro: 0.4 - 31.5" / 1.0 - 80 cm
Zoom Digital: 4x
Recording
Resolution 1920 x 1080 at up to 30 fps
1280 x 720 at up to 30 fps
640 x 480 at up to 30 fps
320 x 240 at up to 30 fps
System NTSC, PAL
Recording Media SD/SDHC card up to 32 GB, or MMC card
Audio Recording Yes, with video or voice memo via built-in microphone
Display
Display Type LCD
Screen Size 3.0" / 7.6 cm
Exposure Setting
Exposure Modes Auto, manual
Exposure Compensation -2 to +2
Shooting Modes Auto, night mode, macro
White Balance Auto, Sunny, Cloudy, Fluorescent, Tungsten
Effect Normal / natural color
Black and white
Classic sepia tone
Self-Timer Delay 10 sec
Continuous Shooting Yes
Flash
Flash Modes Auto, force, off
Other Display Settings
Frequency Set flicker frequency to 50 Hz or 60 Hz
Date Date stamp on/off
Connectivity
Connectors HDMI out, Composite AV-out (NTSC / PAL), USB 2.0
General
Power NP60 lithium-ion rechargeable battery (3.7 V, 1000 mAh)
DC input: 5.0 V, 1.0 A
System Requirements Operating system: Windows XP SP2, Vista or Windows 7
CPU: AMD or Intel CPU with 3.2 GHz, or multi-core CPU
System RAM: 1.0 GB (2.0 GB recommended)
Graphic card: 256 MB memory
CD-ROM speed: 4X or above
Software: H.264 decoder (Quick Time Player 7.4.1 or above)
Other: 1 free USB port, 1 optical drive
Operating Environment Temperature: 0 to 45°C
Humidity: up to 85% RH
Dimensions 4.6 x 2.3 x 2.5" / 117 x 59 x 63 mm
Weight 10.6 oz / 300 g
UXDV-3 HD 1080p Digital Video Camera
  • Set of Video Cables for TV Connection
  • AC Adapter
  • USB Cable
  • HDMI Cable
  • NP-60 Type Battery
  • Wrist Strap for Camera
  • CD-ROM with Driver Software
Limited 1-Year Warranty
